Lagavulin
- Ryzen 9 5950X
- RTX 3090 24 GB
- 64 GB DDR4-3800
- 2 × 360 rads
- 4.25 TB storage
The build
This was the first time I'd built something this endgame. It's the culmination of starting on X370 and working up to this over the years. It's been a fun trip, AMD!
Lagavulin is my central command: it does almost everything I need it to, and for everything else there's the NAS.
The memory runs at 3600 MHz, CL14-14-14-32.

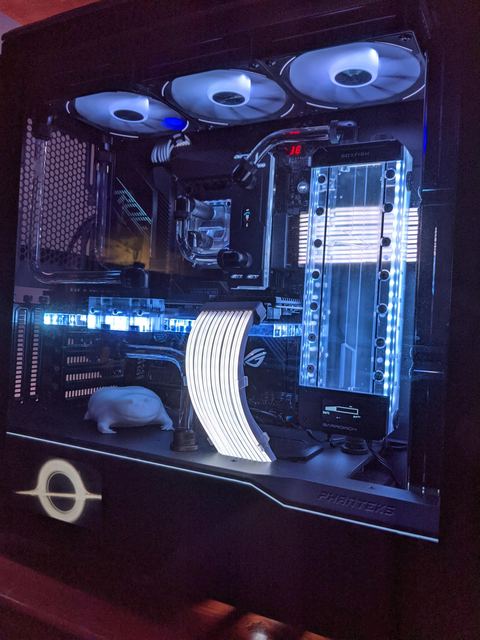

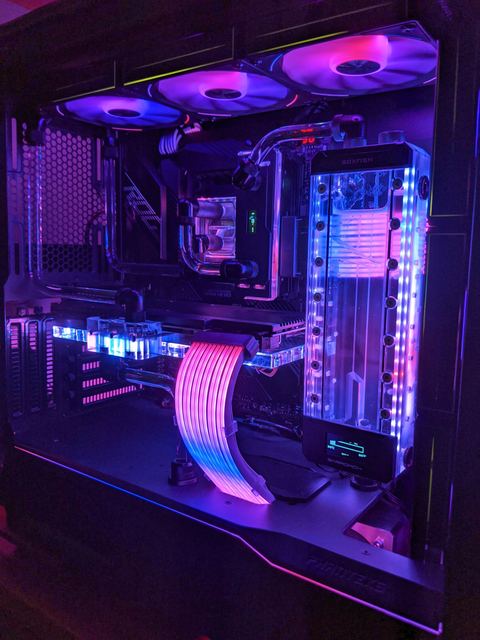

There are a few configuration changes across the photos, but it's the same machine throughout. The parts list is as it stood in April 2022. After this, Lagavulin went into storage while the new house was finished, and came out as Lagavulin: V.

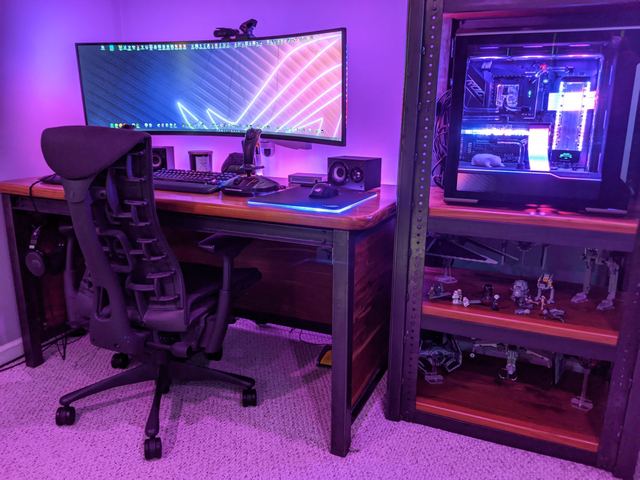

Photos
Parts
Core
- CPU
- AMD Ryzen 9 5950X16 cores, 3.4 GHz
- Motherboard
- ASUS ROG Crosshair VIII Dark Hero
- Memory
- 2 × G.Skill Trident Z Neo 32 GB4 × 16 GB DDR4-3800 CL14, run at 3600 CL14
- Graphics
- ASUS ROG Strix GeForce RTX 3090 OC24 GB
- Storage
- 2 × WD Black SN850 2 TBNVMe, PCIe 4.0
- Samsung 840 Pro 256 GBSATA
- Power
- Corsair AX1600i1600 W, 80+ Titanium, fully modular
- Case

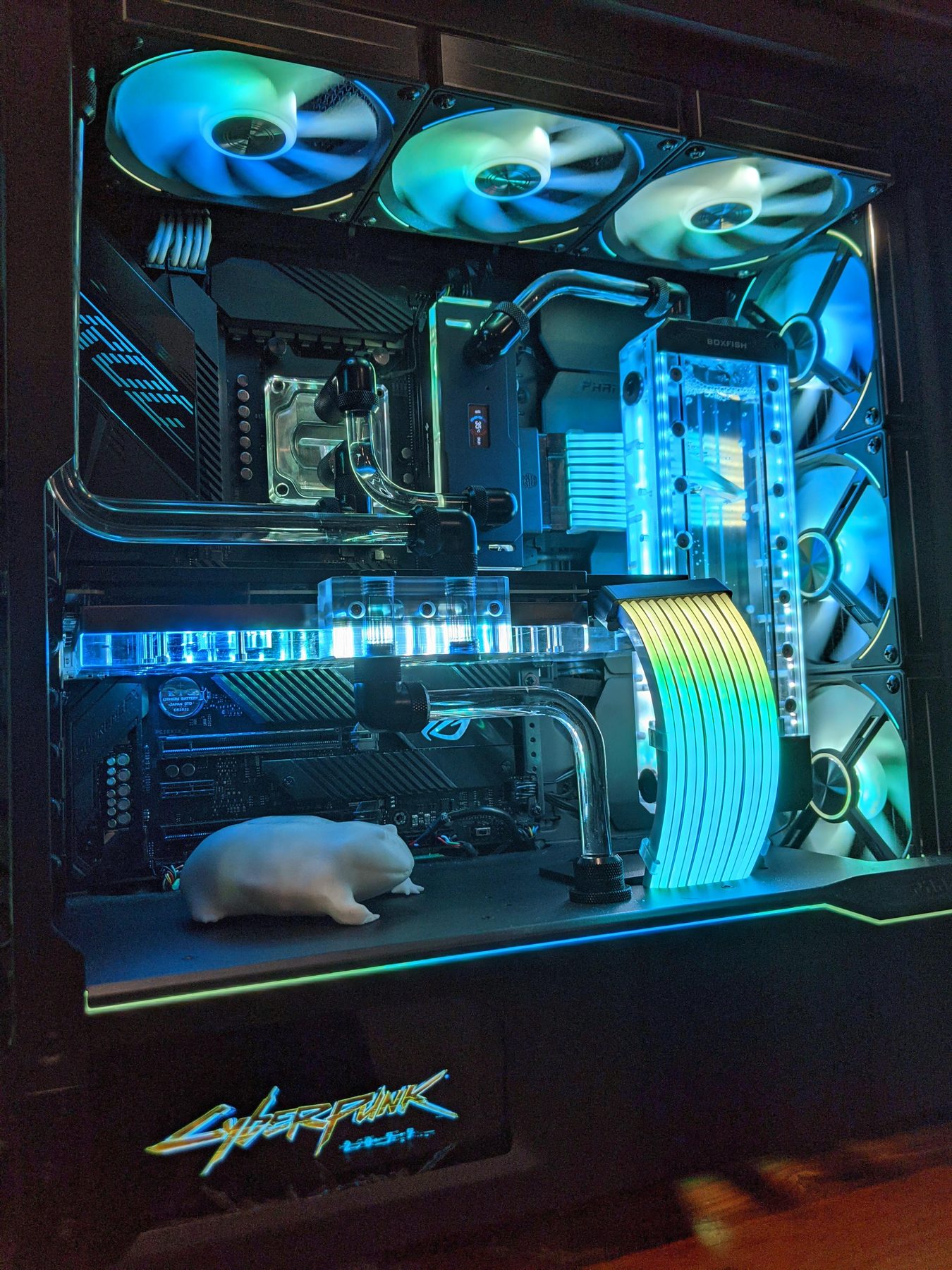

- Phanteks Evolv X
- OS
- Windows 10 Pro

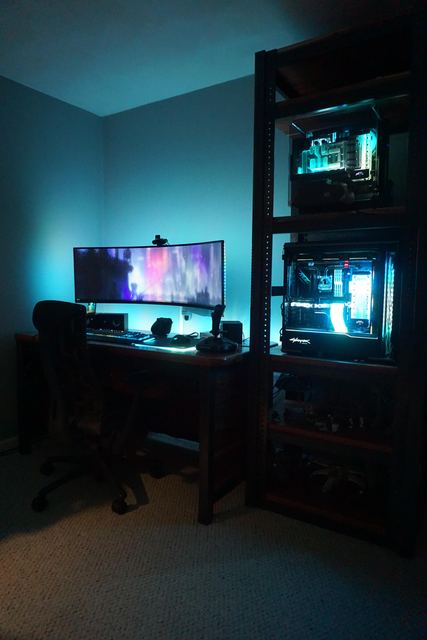

Desk

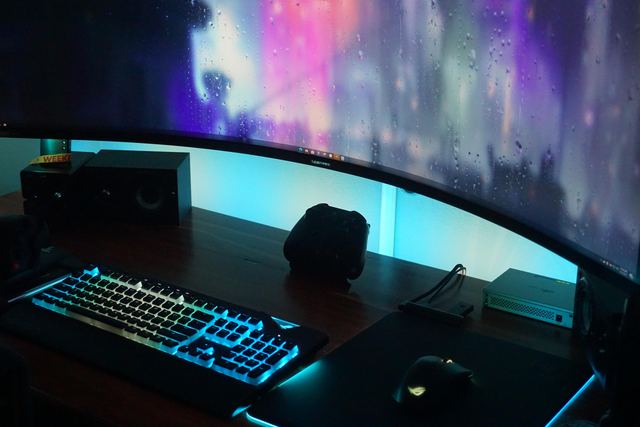

- Monitor
- Samsung Odyssey G9 49"5120 × 1440, 240 Hz
- Arm
- WALI gas spring desk mount
- Keyboard
- ASUS ROG Claymore
- Mouse
- ASUS ROG Chakram
- Mouse pad
- ASUS ROG Balteus Qi
- Headphones
- Sennheiser HD 58X Jubilee
- DAC / amp
- FiiO E17 and E09K
- Speakers
- Monoprice satellite speakerson a FiiO A1 amplifier
- Webcam
- Logitech BRIO

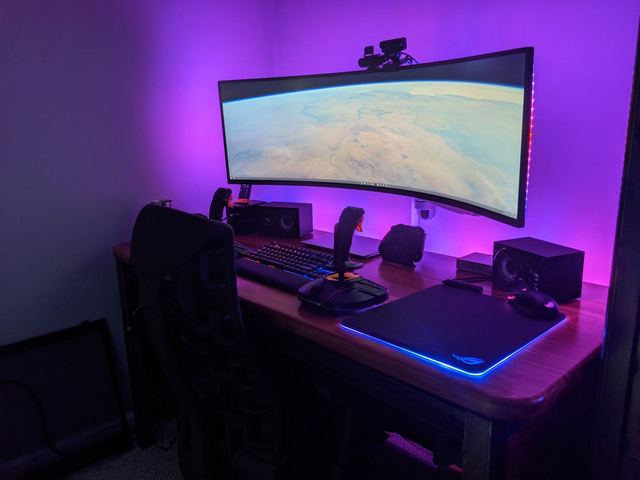

- Flight
- Thrustmaster T.16000M FCS HOTASplus a second T.16000M stick
- VR
- Samsung HMD Odyssey+
- Chair
- Herman Miller Embody
- UPS
- APC Back-UPS Pro 1500VA
Cooling
- CPU block
- Optimus Foundation

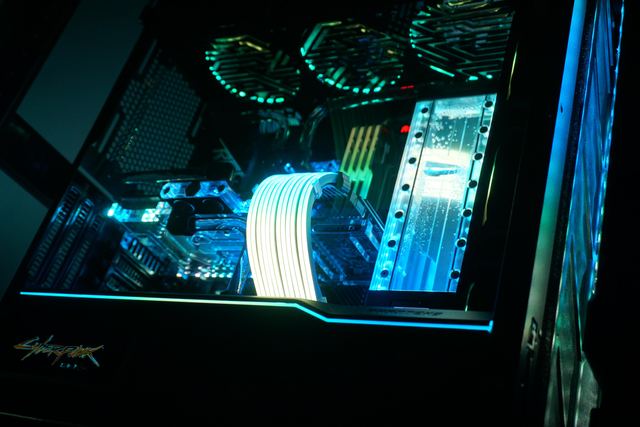

- GPU block
- Optimus Absolute
- RAM block
- Barrowch FBRWB-PA-V2

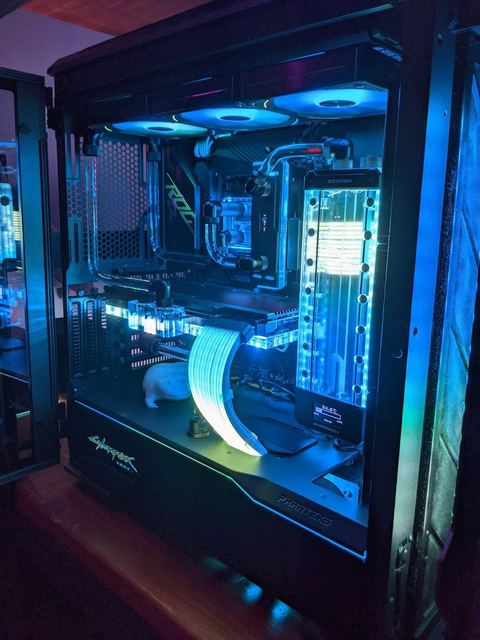

- Reservoir
- Barrowch Boxfish 250 mmOLED display, addressable RGB
- Pump
- EK-D5 PWM G2in a Watercool HEATKILLER D5-TOP
- Radiators
- 2 × Hardware Labs Nemesis 360 GTS
- Fans
- Lian Li UNI FAN AL120
- Flow meter
- Barrow SLF-V3
- Tubing
- Hardline
- Paste
- Kingpin Cooling KPx
Lighting and extras
- Cables
- Lian Li Strimer Plus24-pin and triple 8-pin
- RGB
- ASUS ROG Aura Terminalplus a WS2812B strip
- Display
- 5.5" HDMI AMOLED touch screenon a flat FPC HDMI ribbon
- 24-pin
- Cooler Master 90° 24-pin adapter
Next version
Lagavulin: VLian Li O11 Vision · Ryzen 7 9800X3D · RTX 3090 · custom loop
